Name: ISO 340 AS1334.10 Conveyor Belt Vertical Burning Tester with 10.5mm Bunsen Burner and 0°～45° Adjustable Rotation for Flammability Testing
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-FL856V
Price: 4,500.00 USD
Availability: InStock

Αρχική Σελίδα Προϊόντα Εξοπλισμός δοκιμής ευφλέκτου

ISO 340 AS1334.10 Conveyor Belt Vertical Burning Tester with 10.5mm Bunsen Burner and 0°～45° Adjustable Rotation for Flammability Testing

Λεπτομέρειες:

Τόπος καταγωγής:	ΚΙΝΑ
Μάρκα:	SKYLINE
Πιστοποίηση:	CE
Αριθμό μοντέλου:	SL-FL856V

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1 μονάδα
Τιμή:	negotiated
Συσκευασία λεπτομέρειες:	θήκη από κόντρα πλακέ
Χρόνος παράδοσης:	15 εργάσιμες ημέρες
Όροι πληρωμής:	T/t
Δυνατότητα προσφοράς:	1 μονάδα/ μήνα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Υλικά:	ατσάλι	Πρότυπα:	ISO340
Bunsen Burner:	Η εσωτερική διάμετρο είναι 10,5 χιλιοστά	Γωνία περιστροφής καυστήρα Bunsen:	0 ° ～ 45 ° ρυθμιζόμενο
Θερμοστοιχείο:	Πληκτρολογήστε K Armor	Εύρος εμφάνισης θερμοστοιχείων:	0 ～ 1300 ℃
Επισημαίνω:	10.5mm Bunsen Burner Conveyor Belt Vertical Burning Tester , 0°～45° Adjustable Rotation Vertical Burning Test Chamber , 0～1300℃ Display Range Flammability Testing Equipment

ISO 340 AS1334.10 Conveyor Belt Vertical Burning Tester Running Belt

ISO 340 AS1334.10 Conveyor Belt Vertical Burning Test Chamber Running Belt Vertical & Horizontal Fire Test Machine

Product Specifications

Attribute	Value
Materials	Steel
Standards	ISO340
Bunsen burner	The inner diameter is 10.5mm
Bunsen burner rotation angle	0°～45° adjustable
Thermocouple	Type k armor
Thermocouple display range	0～1300℃

Product Description

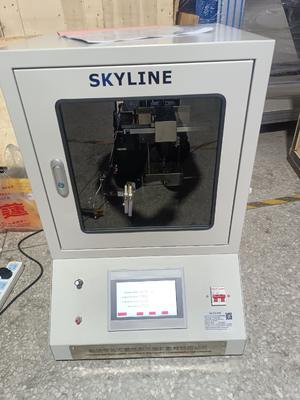

Conveyor Belt Vertical Burning Test Chamber

Scope

This tester is suitable for conveyor belts and steel cord conveyor belts with textile bodies, and is also suitable for testing the flammability and flame propagation characteristics of horizontally oriented conveyor belt samples.

Principle

For a given period of time, the ends of the horizontally oriented conveyor belt specimens were exposed to flames, and the conveyor belt response to ignition sources was evaluated on a small scale. The duration of removal of the burner flame was measured, and after the flame died, a stream of air passed through the sample to measure the duration of afterglow.

Standards Compliance

This tester is produced according to the standards and requirements of AS 1334.10 1994 "Determination of Flammability and Flame Propagation Characteristics of Conveyor Belts" and ISO 340-2022 "Conveyor Belts - Laboratory Scale Flammability Characteristics - Requirements and Test Methods".

Definitions

Flame duration: after 60s, after the burner under the sample is removed, the sample continues to burn
Afterglow: slow burning without flame
Flame period: the total flame duration of a single group of tests
Afterglow period: the total afterglow time of a single group of tests
Acceptance test: a test in accordance with AS 1334.10 1994 to prove that the sample complies with its technical requirements
Type certification: in accordance with AS 1334.10 1994 in order to comprehensively identify and evaluate product quality
Vertical test: test according to ISO 340-2022

Technical Parameters

Items	Specification
Ignition time setting range	0～999.9s
Combustion timing range	0～999.9s
Bunsen burner	The inner diameter is 10.5mm
Bunsen burner rotation angle	45°~90°
Thermocouple	Type k armor
Thermocouple display range	0～1300℃
Test flame temperature	1000±20℃
Flame ruler	50～150/180mm
Combustion chamber dimensions	500mmx500mm*500mm
Combustion gas	Propane gas, purity > 95%
Volume (wxdxh)	555x651x738mm
Weight (approx.)	≈40kg
Power supply	Ac 220v±10%,50～60hz
