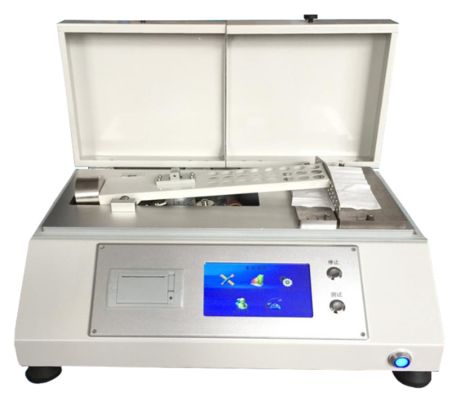

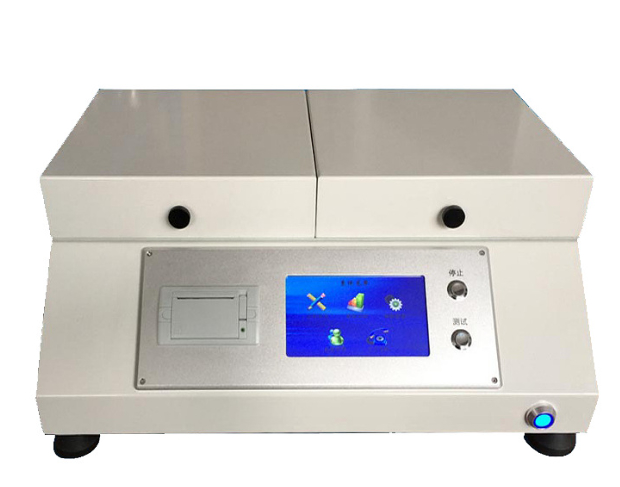

Name: TAPPI T498 Tissue Softness Test Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-P22
Price: 4,500.00 USD
Availability: InStock

Αρχική Σελίδα Προϊόντα εξοπλισμός δοκιμής εργαστηρίων

TAPPI T498 Tissue Softness Test Machine

Λεπτομέρειες:

Τόπος καταγωγής:	ΚΙΝΑ
Μάρκα:	SKYLIE
Πιστοποίηση:	CE, Calibration Certificate, Rosh, CO...
Αριθμό μοντέλου:	SL-P22

Πληρωμής & Αποστολής Όροι:

Ποσότητα παραγγελίας min:	1
Συσκευασία λεπτομέρειες:	Εξαγωγή πακέτου κόντρα πλακέ
Χρόνος παράδοσης:	15 εργάσιμες ημέρες
Όροι πληρωμής:	L/C, D/P, D/A, T/T, Western Union, MoneyGram
Δυνατότητα προσφοράς:	20-30 /μήνα

Επικοινωνία

Λεπτομερής Περιγραφή Προϊόντος

Μέτρηση της σειράς:	(10 ~ 1000) mN	Ταχύτητα δοκιμής:	1.2mm/s
Χρόνος μέτρησης:	15s	Ψήφισμα:	1mN
ακρίβεια:	± 1%	Βάθος διείσδυσης ανιχνευτή:	8 +0,5 mm
Πλατφόρμα δείγματος στενού πλάτους:	5mm, 6,35mm, 10mm, 20mm	Σφάλμα παραλληλισμού και στις δύο πλευρές της σχισμής του πίνακα δείγματος:	≤0.05mm
Παροχή ηλεκτρικού ρεύματος:	AC 220V ± 22V, 50Hz
Επισημαίνω:	TAPPI T498 tissue softness tester , lab tissue softness testing machine , TAPPI tissue softness test equipment

TAPPI T498 Tissue Softness Test Machine

Tissue Softness Tester

Product Overview

The tissue softness tester is a test instrument that simulates the softness of the hand. It is designed according to the relevant provisions of national standard GB8942 "Determination of paper softness". It is mainly used for the softness measurement of sheet-like soft software materials such as medium and high grade toilet paper, tobacco sheets and fabrics.

The instrument test system uses digital control technology controlled by microcomputer, featuring a humanized touch screen display with Chinese and English bilingual operating system. It realizes man-machine dialogue function with advantages of advanced technology, complete functions, reliable performance and easy operation. It is an ideal experimental equipment for papermaking, scientific research and quality inspection industries.

Test Principle

Under the specified conditions, when the sample is pressed into a certain depth (about 8mm) by the plate probe of the softness meter, the sum of the maximum vector of the anti-bending force of the sample itself and the friction force between the sample and the gap is called softness, which is expressed in millinewtons. The smaller the softness value, the softer the sample is.

Test Standards

GB/T 8942, QB/T 1060, ASTM D2923, ASTM D6828-02, TAPPI T498, INDA IST 90.3, EDANA WSP 90.3

Technical Parameters

Parameter	Specification
Measuring range	(10 ~ 1000) mN
Test speed	1.2mm/s
Measurement time	15s
Resolution	1mN
Accuracy	±1%
Probe penetration depth	8 +0.5mm
Sample platform narrow width	5mm, 6.35mm, 10mm, 20mm
Parallelism error on both sides of the sample table slit	≤0.05mm
Display	Chinese and English 5-inch touch screen with curve display, touch screen life: about 50,000 hours
Power supply	AC 220V ± 22V, 50Hz
Transport packaging	Outer box (wooden box), inside the box (buffer material)
